JOINT R031 B3L3L

Quick Overview
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more
Part id
R031038651
More Information
Joint Size 1-1/4"
Flow Dual Passage Rotating Syphon
Rotor (K) G 1-1/4" LH (ISO 228-1)
Inlet M Rp 1-1/4" RH (ISO 7)
Outlet P G 3/4" RH (ISO 228-1)
Syphon S 22 mm

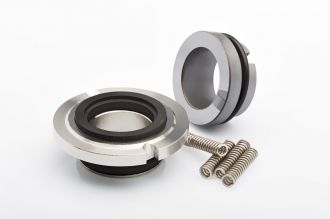

Seal Package B3
Fluid Water, Air, Hydraulic Oil, Glycol, Coolant
Weight 0.000 kg
RPM (max) 2000
Pressure 40
Temperature (min) -19°C
Temperature (max) 120°C
Manufacturer Johnson-Fluiten
Country of Origin Italy
