ROTARY JOINT R031 B3M1J

Quick Overview

The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more

Step-by-Step Maintenance: Replacing Sealing Rings

Part id

R031020606

Qty

More Information

More Information
Joint Size	1-1/4"
Flow	Single Passage

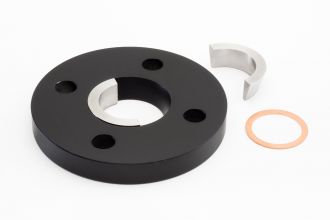

Rotor (K)	Quick Release (KJ)
Inlet M	G 1-1/4" RH (ISO 228-1)
Seal Package	B3
Fluid	Water, Air, Hydraulic Oil, Glycol, Coolant
Weight	3.000 kg
RPM (max)	2000
Pressure	40
Temperature (min)	-19°C
Temperature (max)	120°C
Manufacturer	Johnson-Fluiten
Country of Origin	Italy
